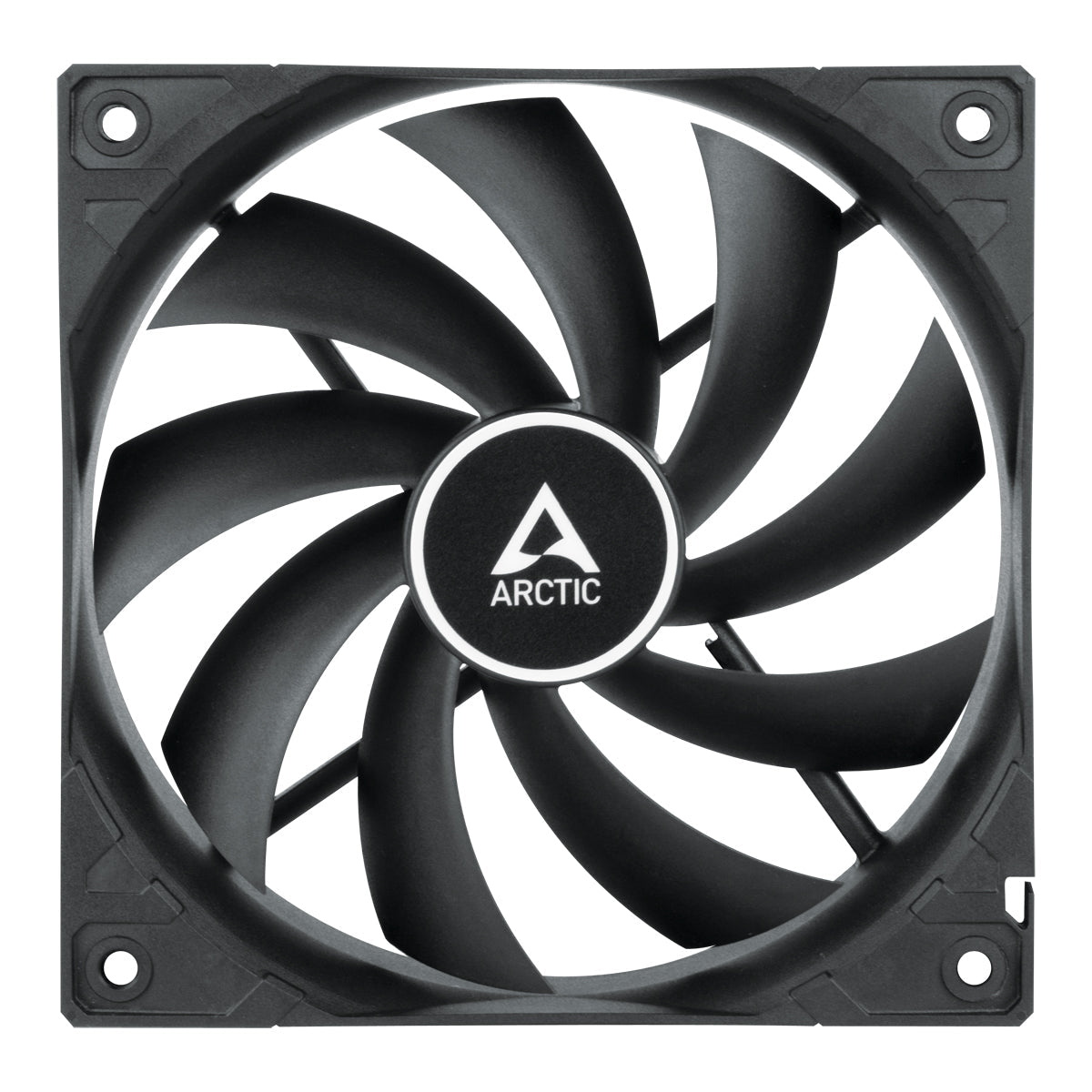

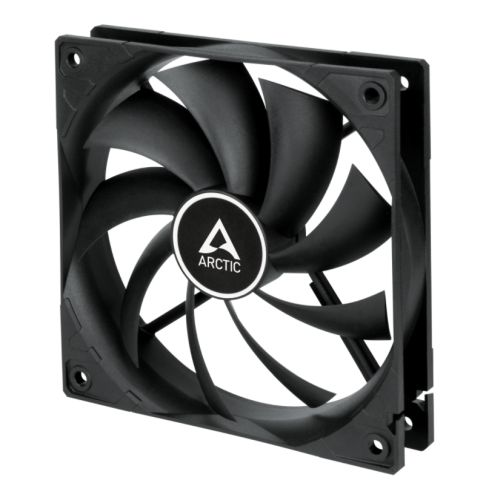

Arctic F12 Low Noise 12cm Case Fan with 9 Blades & Fluid Dynamic 1350 RPM
Arctic F12 Low Noise 12cm Case Fan with 9 Blades & Fluid Dynamic 1350 RPM
- Innovative Fan Design.
- Two way installation.
- Long service life.
- Limited 6 Years Manufacturer's Warranty.
Product Description
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimising the noise level yet delivering the desired airflow and pressure.
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
Two Way Installation
- Blow warm air out of the case.
- Draw cool air into your case.
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the F12.
Specifications
Performance
|
Fan Speed: |
1,350 RPM (@ 12V DC); 900 RPM (@ 7V DC); 650 RPM (@ 5V DC) |
|
Airflow: |
53 cfm | 90.1 m³/h |
|
Static Pressure: |
1.00 mmH2O |
|
Noise Level: |
0.3 Sone |
Fan
|
Fan Frame: |
Standard |
|
Control Type: |
|
|
Connector: |
3-Pin Connector |
|
Fan Bearing: |
Fluid Dynamic Bearing |
|
Operating Ambient Temperature: |
0—40 °C |
|
Warranty: |
6 Years |
Electric Characteristics
|
Typical Voltage: |
12 V DC |
|
Starting Voltage: |
2.7 V |
|
Current | Voltage: |
0.12 A | 12 V DC |
|
Cable Length: |
400 mm |
Size & Weight
|
Length: |
120 mm |
|
Width: |
120 mm |
|
Height: |
25 mm |
|
Weight: |
107 g |
